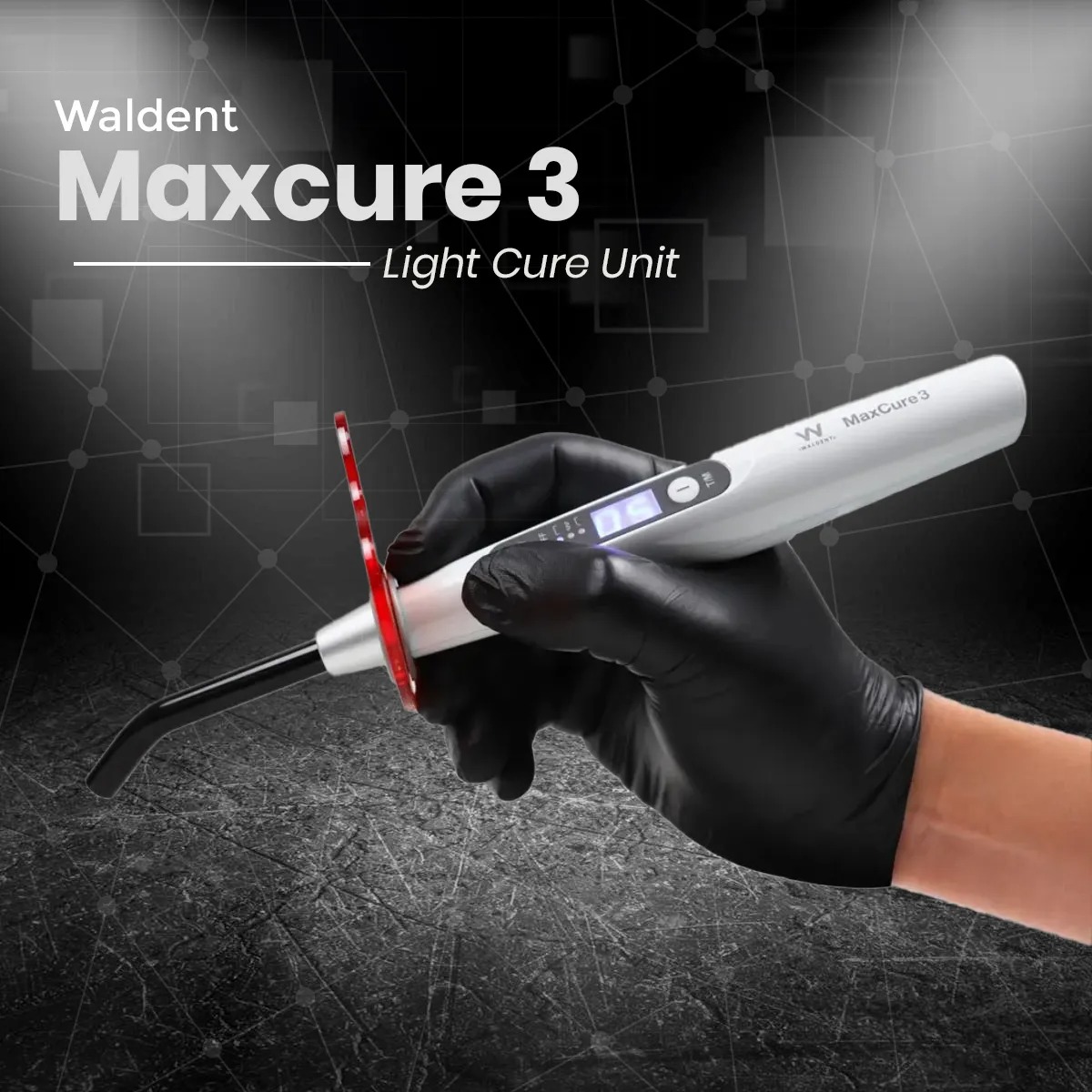

Waldent Maxcure 3 Light Cure Unit

Dental LED  curing light

Light cure unit – the product suppose to be used in hospital and dental clinic, should be used by trained qualified dentist. This curing light is used for the principal of ray radiation to solidify the light-sensitive resin by shooting at it in a short time, is used to restore theeth

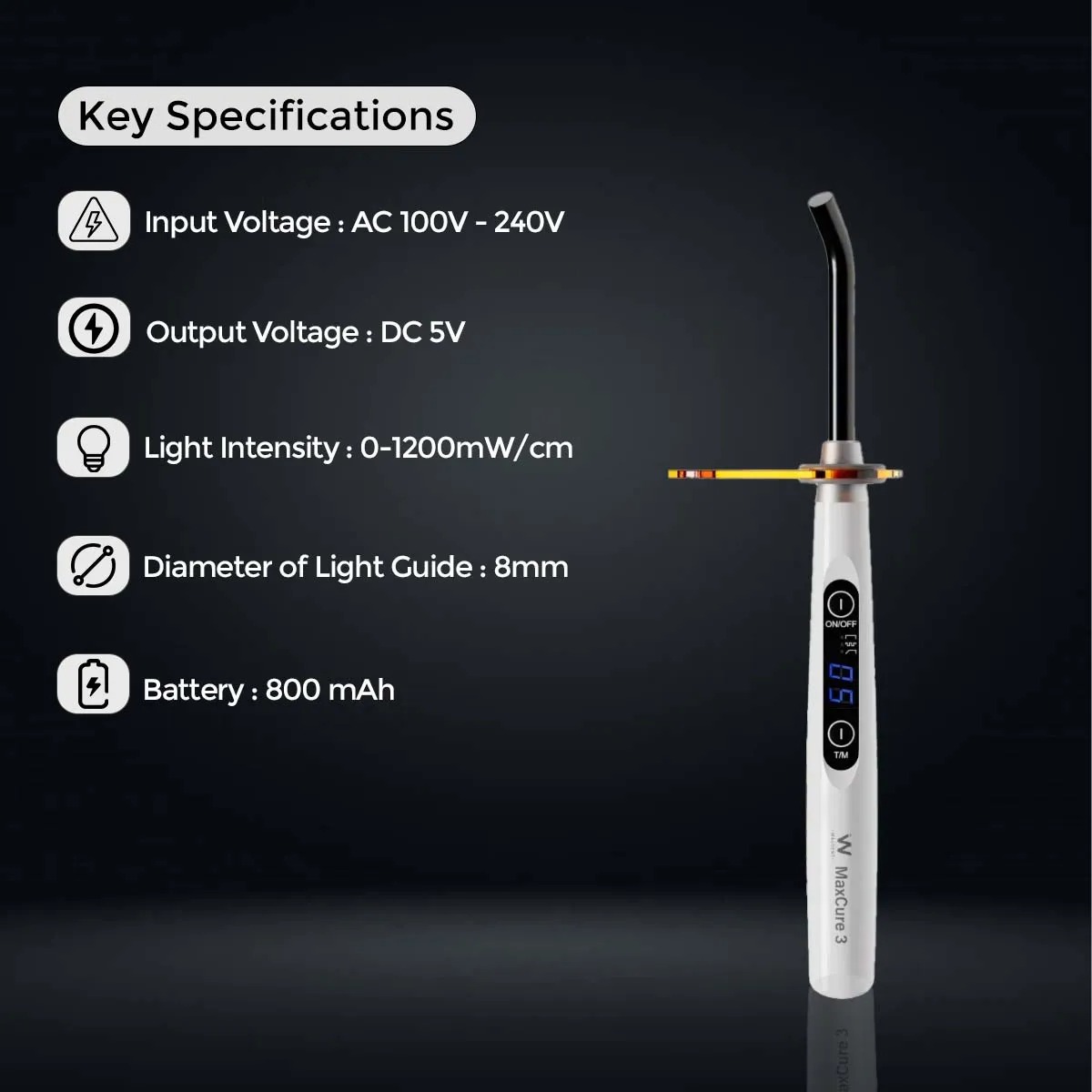

 Key Specifications:-

Environmental Factors

Operation: 5°C — 40°C / 30% — 75% relative humidity / 70 – 106KPa atmospheric pressure
Transportation and Storage: -20°C – +40°C /10% 93% relative humidity/70 106KPa
atmospheric pressure.

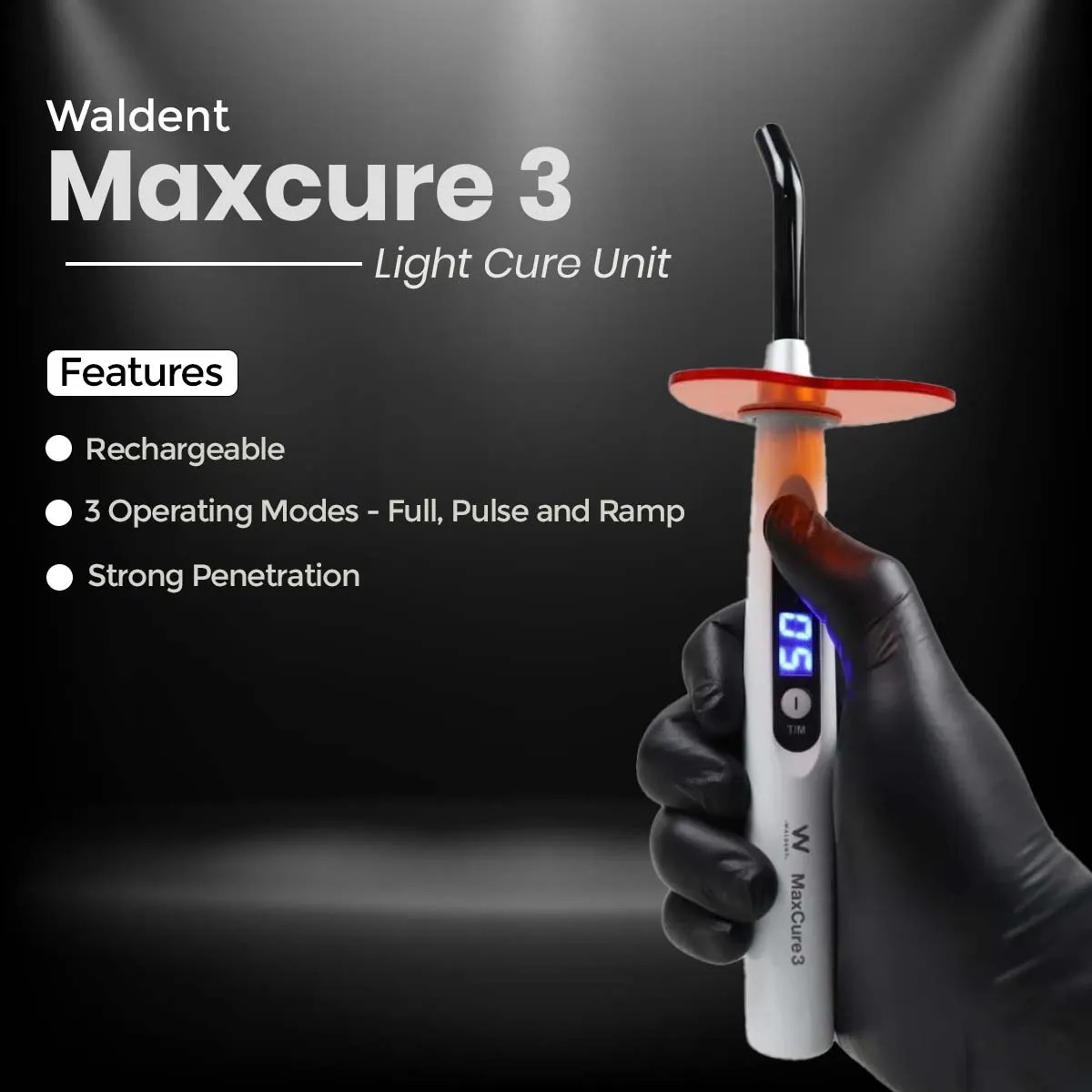

Curing Light Mode Applications

FULL : For general applications

PULSE : For more gentle processing, designed for reducing the shrinkage of composite

RAMP : First 0-5 seconds are ramped for more gentle processing, designed for patients sensitive to heat

Depth of cure

• F.O Light Guide : 8 mm (dia.)
• Light Wavelength : 430 – 480nm
• Application : General
• Full : 1,200mW/cm2+10%for 5, 10, 15, ,20  seconds
• Pulse : 0-1, 200mW/cm2 + 10%for  5, 10, 15, 20, seconds
• Ramp : 1st five seconds from 0-1200mW/cm2+10% next 5, 10 , 15, 20, seconds 1200mW/cm2+10%
• Model: MaxCure3
• Power Input: 100-240VAC, 50Hz/60Hz
• Power Output: 5V DC/1A
• Wave length: 430 nm-480 nm
• Light intensity: 0-1200mW/cm²
• Battery: 800 mA

Packaging:-

• 1 x Light Cure Unit
• 1 x Adapter
• 1 x light protector
• 1 x optic probe
• 1 x Instructions Manual

Warranty:-

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
